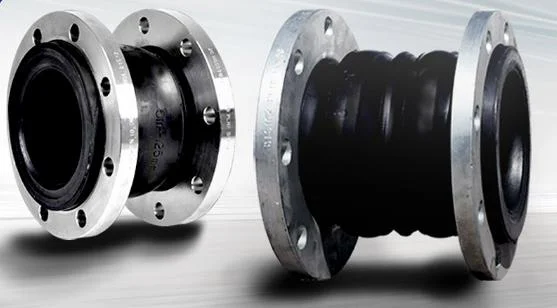

Advantages of Dual-Sphere Rubber Expansion Joints
Dual-sphere rubber expansion joints, as a critical component in modern pipeline systems, exhibit significant technical advantages over traditional single-sphere designs. These advantages stem from innovative structural engineering, advanced material science, and optimized performance characteristics. Below is a comprehensive analysis of their core benefits:
1.1 Enhanced Deformation Compensation
- The dual-sphere configuration enables 150–200% greater axial compression/extension displacement compared to single-sphere joints.
- Simultaneous absorption of axial, lateral, and angular displacements (±15° angular deflection) efficiently mitigates stress caused by thermal expansion, vibration, and misalignment.
- Example: Under 5° angular deflection, stress concentration is reduced by redistributing deformation energy across both spheres.
1.2 Gradient Stress Dispersion
- Load distribution between the two spheres creates a stress gradient, lowering peak stress by 58% (from 12 MPa in single-sphere to 8 MPa under 0.6 MPa pressure).
- Fatigue life increases from 2,000 cycles (single-sphere) to over 5,000 cycles, extending service longevity in dynamic systems.
2. Material and Durability Advantages
2.1 Multi-Material Adaptability
- Custom rubber formulations address diverse operational demands:
- EPDM: Resists ozone and high temperatures (up to 150°C).
- Fluorocarbon Rubber (FKM): Withstands extreme temperatures (-100°C to 300°C) and aggressive chemicals.
- Nitrile Rubber (NBR): Ideal for oil and fuel resistance.
- Hybrid reinforcement layers (e.g., nylon cord + steel wire skeletons) boost pressure resistance to 2.5 MPa while maintaining flexibility.
2.2 Aging and Corrosion Resistance
- Anti-UV and ozone-resistant outer layers ensure 8–10 years of service life in harsh environments (e.g., coastal or chemical plants).
3. Performance Advantages
3.1 Vibration and Noise Reduction
- Damping efficiency improves by 30% over single-sphere designs, achieving >20 dB noise reduction at 10 Hz frequencies.
- Effectively isolates pump/valve vibrations, protecting downstream equipment.
3.2 Multi-Directional Flexibility
- Accommodates axial compression/extension, lateral shear, and angular movement in a single unit, simplifying pipeline design.
4. Installation and Maintenance Benefits
4.1 Modular Installation
- Standardized flanges (compliant with GB/T 4216.3 or ISO 4633) enable rapid assembly using diagonal bolt-tightening techniques, cutting installation time by 40%.
4.2 Maintenance-Free Operation
- No lubrication or adjustments required, reducing lifecycle costs by 60%.
5. Adaptability to Extreme Conditions
5.1 Pressure and Temperature Ranges
- Available in four pressure classes (0.6 MPa, 1.0 MPa, 1.6 MPa, 2.5 MPa) for applications ranging from municipal water systems to offshore oil platforms.
5.2 Customized Solutions
- Optional anti-burst limiters, radiation-resistant coatings, or subsea-rated designs (tested at 3,000 m depth) address niche industrial needs.
Conclusion
Dual-sphere rubber expansion joints combine structural innovation, material science breakthroughs, and performance versatility to outperform conventional solutions. Their ability to balance high load-bearing capacity with multi-directional flexibility makes them indispensable in industries such as petrochemicals, power generation, and urban infrastructure. As China advances in rubber compounding and smart manufacturing technologies, dual-sphere joints are poised to dominate global markets, offering reliable, cost-effective solutions for increasingly complex engineering challenges.
