Rubber Expansion Joint
JOINTIB stocks and distributes a comprehensive range of rubber expansion joints for use in many tough, demanding industrial applications such as water and wastewater, pulp and paper, chemical processing, air conditioning, heating and ventilation systems, mining, metals and pumping applications.
All uploads are secure and confidential
Hi, I’m Pew from JOINTIB. Let me guide you through this page. Our company has been working so hard for more than 20 years to perfect the process of manufacturing Rubber Expansion Joint. Click the table of contents to know more about the products.
What is Rubber Expansion Joint？
Rubber expansion joint is also called pipe rubber expansion joint, or rubber bellow expansion joint.
It is a flexible connector fabricated of natural and/or synthetic elastomers and fabric, if necessary, internal metallic reinforcements designed to provide stress relief in piping systems due to thermal movements and mechanical vibration.
Rubber expansion joints offer flexibility allowing concurrent movements, isolation of vibration, reduction of noise, resistance to abrasion and chemical erosion within fluid systems.
Why use Rubber Expansion Joint？
Reduce Mechanical Noise
It dampens sound transmission with their rubber to steel interface.
Reduce Vibration
It is important to prevent unbalanced forces building up to a level where they can damage a fluid system.
Improve Thermal Stability
It may use PTFE and FEP liners within the joint body. When fluoroplastics are used in rubber expansion joints this results in better thermal stability.
Absorb Movement
It can routinely manage the resulting lateral, torsional and angular movements whilst strategically located rubber expansion joints can mitigate thermal expansion and contraction movements.
Resistant Abrasion/Erosion
It is made from a wide variety of natural, synthetic, and special purpose elastomers and fabrics to meet challenging operating conditions.
Easy To Install
The vulcanized rubber and fabric flanges of elastomeric expansion joints are integrated and therefore do not require additional gaskets.
Types of Rubber Expansion Joint

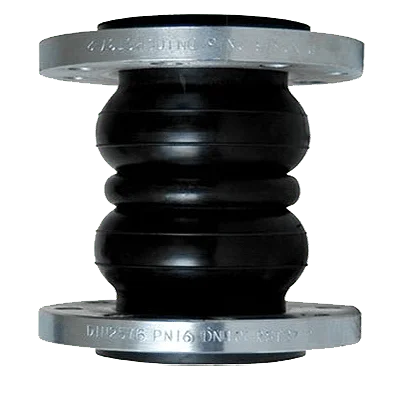

Double Sphere Expansion Joint
Supply Range: DN25mm to DN1000mm
Wide Arch expansion Joint
Supply Range: DN40mm to DN300mm
Threaded Union expansion Joint
Supply Range: DN15mm to DN80mm
Slip-On Type Expansion Joint
Supply Range: DN50mm to DN500mm
Concentric Reducers Expansion Joint
Supply Range: DN25mm to DN3000mm
Eccentric Reducers Expansion Joint
Supply Range: DN25mm to DN3000mm
1. We can source any other material or type on request, but quotes take up to 48 hours.
2. All you need to know the detailed information of types of rubber expanion joint, click here

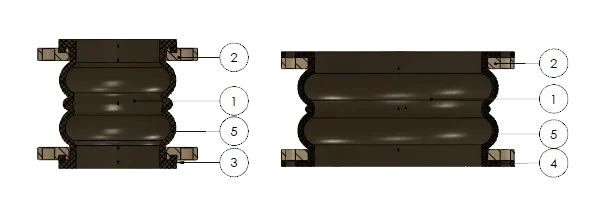

Parts of Rubber Expansion Joint
Material: EPDM/NBR/Hypalon
Function: A protective, leak-proof lining tube that extends through the bore to the outside edges of the flanges to eliminate the possibility of the fluids penetrating the carcass and weakening the fabric.
Material: Ductile Iron/Carbon Steel/SS304/ss316
Function: A synthetic or natural fabric between the tube and cover that flexibly supports the expansion joint for movement or pressure.
Material: Mild Steel
Function: Solid rings or wire embedded in the carcass which strengthen the expansion joint to withstand high pressure or vacuum.
Material: EPDM/NBR/Hypalon
Function: A synthetic or natural fabric between the tube and cover that flexibly supports the expansion joint for movement or pressure.
Material: Nylon
Function: The body of the expansion joint consisting of fabric and / or interior metal reinforcement.
Industry Applications of Rubber Expansion Joint

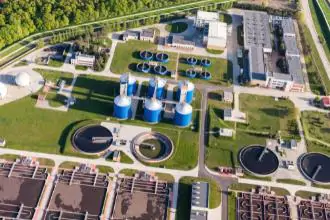

Water & Wastewater
Marine

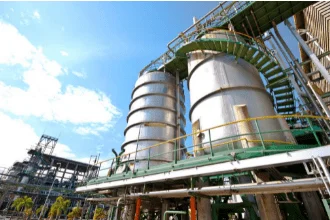

Chemical

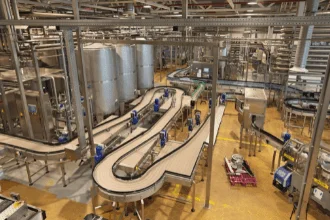

Food Processing

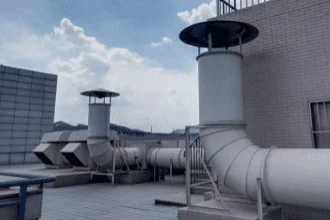

HVAC

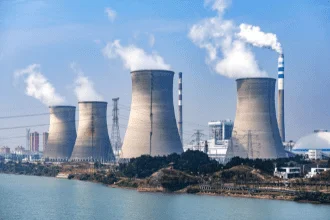

Power

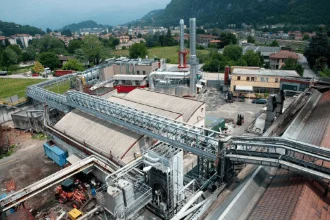

Pulp & Paper

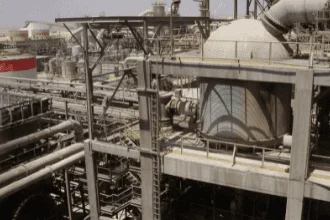

Mining
Considerations When Buying Rubber Expansion Joint
In order to buy the right Rubber Expansion Joint, there are many factors to consider.
Working Conditions
Determine the use of the rubber joint in the equipment or device and determine the working conditions of the product: applicable medium, working pressure, working temperature, etc.
Connection Method
Determine the nominal diameter of the pipe connected to the rubber joint and the connection method: flange, thread, welding, etc.
Choose Type
Choose the type of rubber joint: double sphere joint, single sphere joint, multi-sphere joint, safety joint, etc.
Operation Method
Determine the way to operate the flexible joint: manual, electric, electromagnetic, pneumatic or hydraulic, electrical linkage or electro-hydraulic linkage, etc.
Select Material
According to the medium, working pressure and temperature of the pipeline, determine the material of the shell and inner parts of the rubber joint: rubber, gray cast iron, cast iron, ductile iron, carbon steel, alloy steel, stainless acid-resistant steel, copper alloy, etc.
Determine Parameters
Determine the parameters of rubber joints: For automatic rubber joints, first determine the allowable flow resistance, discharge capacity, back pressure, etc. according to different needs, and then determine the nominal diameter of the pipe and the diameter of the valve seat hole.
